How do I choose a narrow range hood insert?

Choose by cutout size, not by model name. The 21-inch Q6 needs a 19 x 10-inch cutout, and the 27-inch Q1 needs a 26 1/8 x 10 5/8-inch cutout. Model names are rounded: for example, the Q6 measures 20 1/2 inches wide including its lip. Cut the opening in the bottom of the cabinet, and per Victory’s manuals, leave at least 3/4 inch between the wall and the cutout so the lip fits. The cabinet must also have front doors for easy access to the insert.

What is the maximum duct length for Victory’s Q6 and Q1 range hood inserts?

The longest acceptable run is 50 feet of straight 6-inch round metal duct, and each listed vent piece uses up part of that limit. Subtract 9 feet per 90-degree elbow, 5 feet per 45-degree elbow, and 7 feet per round-to-rectangle transition, side wall cap with damper, or roof cap. Use no more than two 90-degree elbows, with at least 24 inches of straight duct between them. Keep the duct 6 inches or larger, and avoid reducers, which cut CFM and add noise. The limit is a ceiling, not a promise: every foot and elbow adds airflow resistance.

Is a 600-CFM narrow range hood insert enough for my gas range?

It depends on your range’s total burner output. Per Victory’s CFM guide, add up the BTU of every burner (the heat each produces per hour), divide by 100, then add 100 CFM or more for duct losses. A 40,000-BTU range works out to 500 CFM or more, and a 50,000-BTU range reaches 600 CFM by that math. Victory rates the Q6 and Q1 up to 600 CFM at zero static pressure (no duct resistance), so installed airflow runs lower. For frequent frying, wok cooking or grilling, Victory advises 600 CFM or higher.

How loud are Victory’s inserts for small spaces between 20"-27"?

Victory rates the 21-inch Q6 at 1.0 to 6.0 sones and the 27-inch Q1 at 1.0 to 5.5 sones, from minimum to maximum. A sone measures perceived loudness, or how loud a sound seems: one sone is roughly the sound of a refrigerator at 40 decibels, and the scale is linear, so 6.0 sones seems about six times as loud as 1.0. Your duct also affects what you hear. Both manuals warn that 4-inch or 5-inch duct reduces suction and adds noise and vibration, and their venting rules recommend 45-degree elbows over 90-degree ones when possible.

Does a 600-CFM range hood insert need makeup air?

It may, because the Q6 and Q1 have a 600 CFM maximum rating, above the 400 CFM level where the International Residential Code (IRC) can require makeup air (outdoor air let in to replace what the hood removes). Victory’s guide says the rule applies when your home has a furnace, water heater or other fuel-burning appliance with neither direct-vent nor mechanical-draft venting. That rating is measured with no duct resistance, so real-world airflow is lower, but long duct runs do not automatically exempt you. Local codes vary, so your building department can confirm which edition and appliance conditions apply.

Inserts for small spaces between 20"-27"

Victory’s 21 inch Q6 and 27 inch Q1 are narrow range hood inserts that sit inside a cabinet or custom hood. With inserts for small spaces between 20"-27", fit comes first. The Q6 needs a 19 x 10 inch cutout, and the Q1 needs a 26 1/8 x 10 5/8 inch cutout.

Both have four speeds, a 6 inch round top vent, and an all-metal impeller (fan wheel). Each is rated up to 600 CFM in Victory’s in-house test at zero static pressure (no duct resistance). Your duct length and bends can lower airflow once installed.

Sort by

Compare

Installed 21 Inch 600 CFM Range Hood Insert Victory Q6 flush inside 12 inch cabinets, showing perfect fit and alignment

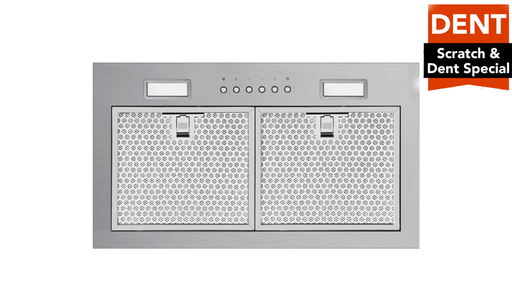

21 Inch 600 CFM Range Hood Insert Victory Q6 stainless steel with LED lights and push-button controls

21 Inch 600 CFM Range Hood Insert Power Pack - VICTORY Q6

$599.00

$599.00 - $599.00

$599.00

$539.10 USD

$539.10 - $539.10

$539.10 USD

If you have ever felt forced to choose between performance and a sleek aesthetic, the 21 Inch 600 CFM Range Hood Insert Victory Q6 is your definiti...

View full details

Compare

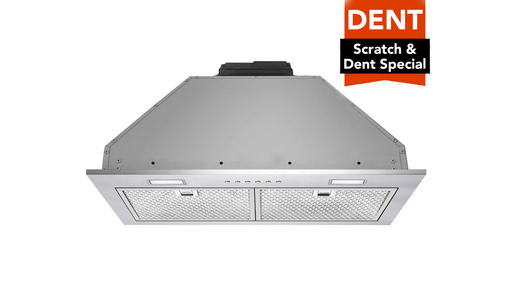

27 Inch 600 CFM Range Hood Insert - VICTORY Q1

$799.00

$799.00 - $799.00

$799.00

$719.10 USD

$719.10 - $719.10

$719.10 USD

Proudly Made in Canada, the 27 Inch 600 CFM Range Hood – VICTORY Q1 delivers professional-grade ventilation for your home kitchen. Engineered for d...

View full details
